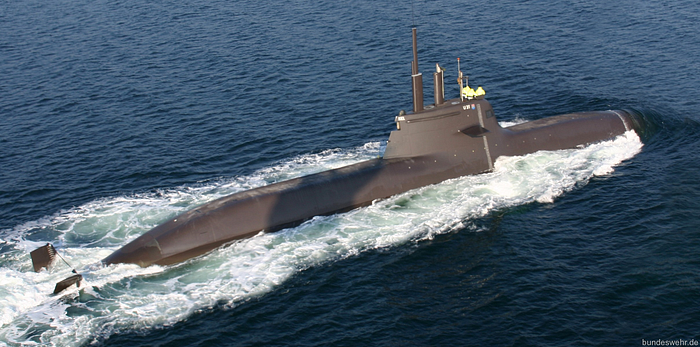

The Type 212A Class Submarine

The Type 212A class submarine represents a leap in modern diesel-electric submarine technology, standing as a collaborative achievement between Germany and Italy. The platform features groundbreaking innovations such as a fuel cell propulsion system, a non-magnetic steel hull, an X-shaped rudder, and a plethora of advanced sensors and weapons systems. But what makes this class of submarines truly remarkable, and what can we expect from its future developments?

Historical Background

The Type 212A class is an evolution, borrowing from Germany’s previous submarine designs tailored for coastal operations in the challenging environment of the Baltic Sea. It is not an isolated invention; the class also incorporates features from the TR-1700 and Dolphin classes built for Argentina and Israel, respectively. This heritage provides the 212A with a proven set of capabilities, effectively blending older lessons with modern technological advancements.

Programme History

The program for developing the Type 212A class began in the 1980s but was officially launched in 1994 with Italy joining the venture. The initial batch, comprising four submarines for each participating country, was ordered in 1998 and saw their commissioning between 2005 and 2008. A second batch was ordered between 2006 and 2008, with commissioning taking place between 2013 and 2017. The third batch of two submarines for Italy was ordered in 2022 and is expected to be commissioned in 2027 and 2029. Most recently, in 2023, an optional fourth submarine was ordered for Italy, indicating a continuing investment in this class.

Design

Aesthetically, the Type 212A features a prismatical hull cross-section and a smooth fin-to-sail transition, setting it apart from older submarine designs. The class is powered by Siemens’ Air-Independent Propulsion (AIP) system with proton-exchange membrane compressed hydrogen fuel cells. This enables the sub to stay submerged for up to three weeks without requiring to snorkel. The acoustic signature is also dramatically reduced thanks to a large inclined propeller and a PBVD system.

For sensors, the class is equipped with TAS-3 towed sonar arrays, FAS-3 hull-mounted sonars, MOA 3070 mine detection sonars, and a Type 1007 navigation radar. It has six 533mm torpedo tubes capable of firing advanced torpedoes like the DM2A4 or Black Shark, in addition to being capable of laying sea mines. A future upgrade is expected to replace the current lead-acid batteries with lithium-ion ones for even greater endurance.

Type 212A Batch II for the German Navy

The second batch of 212As for the German Navy features several enhancements. These include an Indra satellite communication system, an integrated sensor underwater system, an OMS-100 optronics mast, a TAU 2000 decoy ejection system, and an airlock for deploying combat swimmers. These incremental improvements suggest a commitment to refining the platform’s existing capabilities.

Type 212A Batch II and III for the Italian Navy (NFS1 / NFS2 / NFS3)

For Italy, the second and third batches largely follow the architecture of the first, albeit with minor modifications to reduce maintenance costs. A significant addition is the capability for submarine-launched cruise missiles, bringing a new dimension of strategic and tactical flexibility to the platform.

Type 212CD

The future of this class lies in the upcoming Type 212CD, a further evolution with a new propulsion system, increased speed and range, and improved self-defensive capabilities. Germany and Norway have shown interest, with plans to commission two and four units, respectively. The 212CD version promises to further redefine what is possible in the realm of diesel-electric submarines.

Analysis

While the Type 212A class has faced its share of technical issues and operational challenges, most of these have been effectively addressed. Today, it is often ranked among the best — if not the very best — air-independent diesel-electric submarines in the world. Innovations like the IDAS missile, the Triple-M mast, and the Muräne auto-cannon project signify that this class is not merely a product but a continuously evolving platform. These initiatives could very well change the future concepts of underwater warfare.
