Demystifying Epicyclic Gearing: A Guide to Powerhouse Efficiency

Epicyclic gearing, also known as planetary gearing, might sound intimidating, but it’s a fascinating and powerful mechanism found in everything from bicycles to hybrid cars. This post will guide you through its key aspects, including how to ensure proper meshing of gears and how to calculate gear ratios in these ingenious systems.

The Gearing Conundrum: Perfecting Gear Alignment

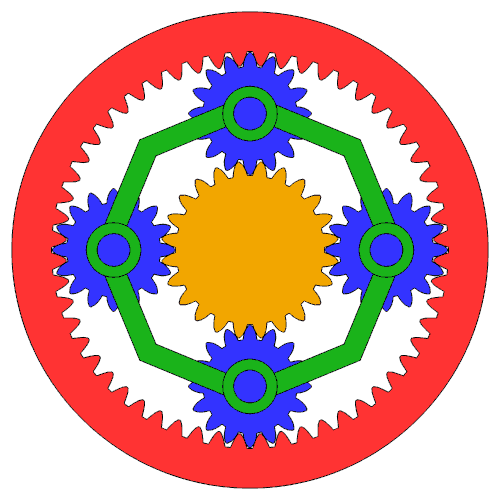

Envision a central gear (the sun gear) encircled by multiple smaller gears (the planet gears) that orbit it. These planet gears also engage with an external ring gear. For seamless operation, the number of teeth on these gears must adhere to a particular rule, represented by the equation:

n_s + n_r = 2n_p

where:

n_s is the number of teeth on the sun gear
n_r is the number of teeth on the ring gear
n_p is the number of planet gears
n is an integer
This formula is crucial for determining the arrangement of the planet gears. To design an epicyclic system with planet gears spaced irregularly (for a unique function), you would need to incorporate an imaginary number for the planet gears in the equation to achieve the correct meshing.

Unlocking the Secrets of Gear Ratios

Now, let’s delve into the slightly complex world of epicyclic gear ratios. Unlike traditional gear trains, epicyclic systems can have three different components acting as input, output, or fixed. This flexibility makes them highly versatile. However, calculating gear ratios requires some effort. Here’s a glimpse into the formulas used:

The equations involve the number of teeth on each gear (sun, ring, planet) and their respective angular velocities (rotational speeds). By solving these equations, we can derive the gear ratio between any two components (sun, carrier, ring) depending on which one is fixed, which one is the input, and which one is the output.

There are even special cases, like when the number of teeth on the ring gear is equal to the sum of the sun gear teeth and twice the number of planet gear teeth. This simplifies the equation significantly.

Exploring Different Configurations: Gearing Up for Various Needs

Here are some common ways epicyclic gears are used:

1. Sun Gear as Input, Carrier Held Fixed: In this setup, the planet gears simply spin on their own axis, with a ratio determined by the number of teeth on the sun and planet gears.
2. Ring Gear Held Fixed, Sun Gear as Input: Here, the planet carrier becomes the output. This configuration offers the lowest gear ratio in an epicyclic system, making it ideal for applications requiring high torque, like tractors.
3. Sun Gear Fixed, Carrier as Input: This setup is commonly seen in bicycle hub gears. The gear ratio is simply the ratio of the sum of the sun and ring gear teeth to the number of teeth on the ring gear.

Understanding these configurations and the underlying calculations empowers you to appreciate the ingenuity of epicyclic gearing. It’s a testament to how seemingly complex mechanisms can be broken down into fundamental principles, making them powerful tools in various engineering marvels.
